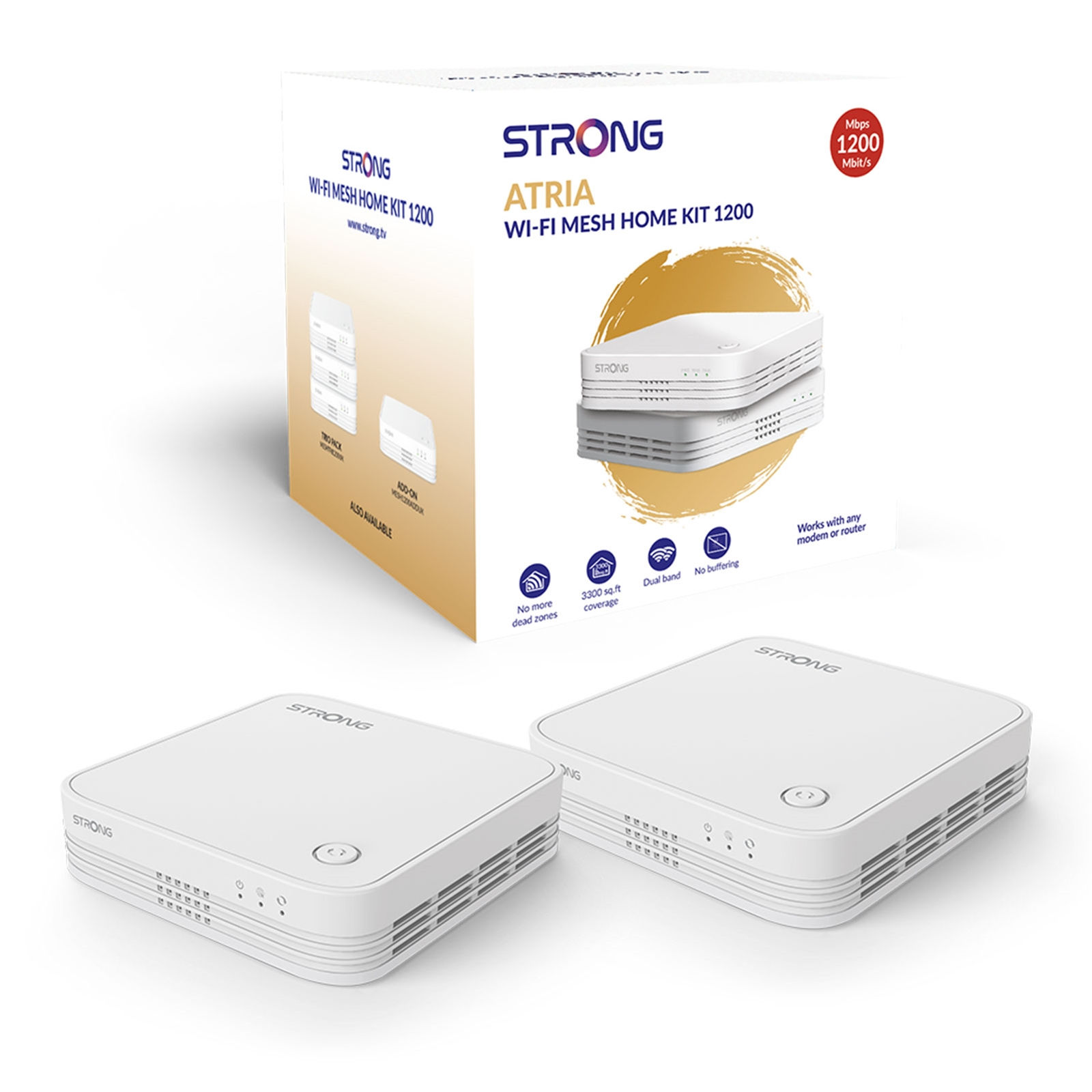

Using state-of-the-art Easy Mesh solution, STRONG's Wi-Fi Mesh Home Kit 1200 combines Mesh technology with the powerful 802.11ac MU-MIMO Wi-Fi standard for ultimate speed and coverage at home. This package of 2 ATRIA Mesh Extender 1200 replaces your current Wi-Fi network without changing your modem or router. It brings a super-fast and seamless roaming Wi-Fi network at a speed up to 1200 Mbps with coverage up to 200 m².
Depending on the size of your house, you can add up to 4x additional ATRIA Mesh Extender 1200 (up to 6x ATRIA Mesh Extender 1200 cover an area of up to 600 m²). Manage your Wi-Fi Mesh network at a finger touch with the ATRIA App available for Android and iOS devices.
Technical specifications
WI-FI
Frequency
2.4 GHz and 5 GHz concurrent
Standards
IEEE 802.11ac/n/g/b/a, IEEE 802.11d,
IEEE 802.11h, IEEE 802.11e, IEEE 802.11i
Signal Rate
5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps
Security
WPA™/WPA-PSK™ & WPA2™/WPA2-PSK™
Antenna
4x internal antennas (3 dBi)
Transmit Power
Europe: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Supported Channels
5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100,104, 108, 112
2.4 GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
HARDWARE
Ethernet Ports
3x 10/100/1000M WAN/LAN ports (Auto MDI/MDIX)
Button
Connect & Secure (WPS), Reset
LEDs
Power, WAN, Pairing
Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power
External power supply, 12 V/1 A DC
Main Chipset
RTL8197FS
Wi-Fi Chipset
RTL8812FR for 5GHz
SOFTWARE
Management
Web User Interface, Time Settings, Configuration Backup/Restore, Firmware Upgrade, System Log
Internet Protocol
IPv4/V6
STRONG Mesh app
Android and iOS downloadable app to manage the Wi-Fi Mesh network
Basic Network
DHCP, DNS, IGMP v1/v2, NAT, IPV4/V6, WDS, WPS, WMM
OTHER SPECIFICATIONS
Certification
CE
Package contents
2x Mesh Extender 1200
2x Power Supply Units (12 V/1 A DC)
1x CAT5E Ethernet Cable
1x Installation Instructions, Warranty Card
System requirements
Internet Browser
Power consumption per unit
< 8 W
INTERNET SERVICES
Easy MESH Support
Automatically Organized Network
Auto ConfigurationSeamless Roaming
Auto MESH Routing
Auto Healing (Redundancy and Fail-over)
Intelligent roaming (Dynamic management of clients and clients frequency bands)
Multiple access
ENVIRONMENT
Operating Temperature
0 °C~+45 °C
Storage temperature
-20 °C~+70 °C
Operating humidity
10%~95% non-condensing
Storage humidity
10%~95% non-condensing
Dimensions (WxDxH) per unit
13013030 mm
Weight per unit
~220 g
top of page
£50.00Price
